Customer Network Kit - Lemon 3 Tribrer Fusion Machine

Lemon 3 Fusion Machine

The Lemon 3 is a new fusion machine with core alignment, covering various melting needs, with multifunctional fiber support, integrated cooling tray, SOC slider, 8s melting, 24s heating etc. All these functions are optimal for efficient fusion.

The Go Fusion Kit consists of the fusion machine, measuring equipment and tools / accessories required to boot with a fiber optic installation team.

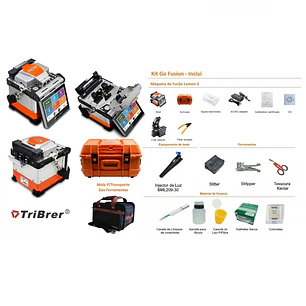

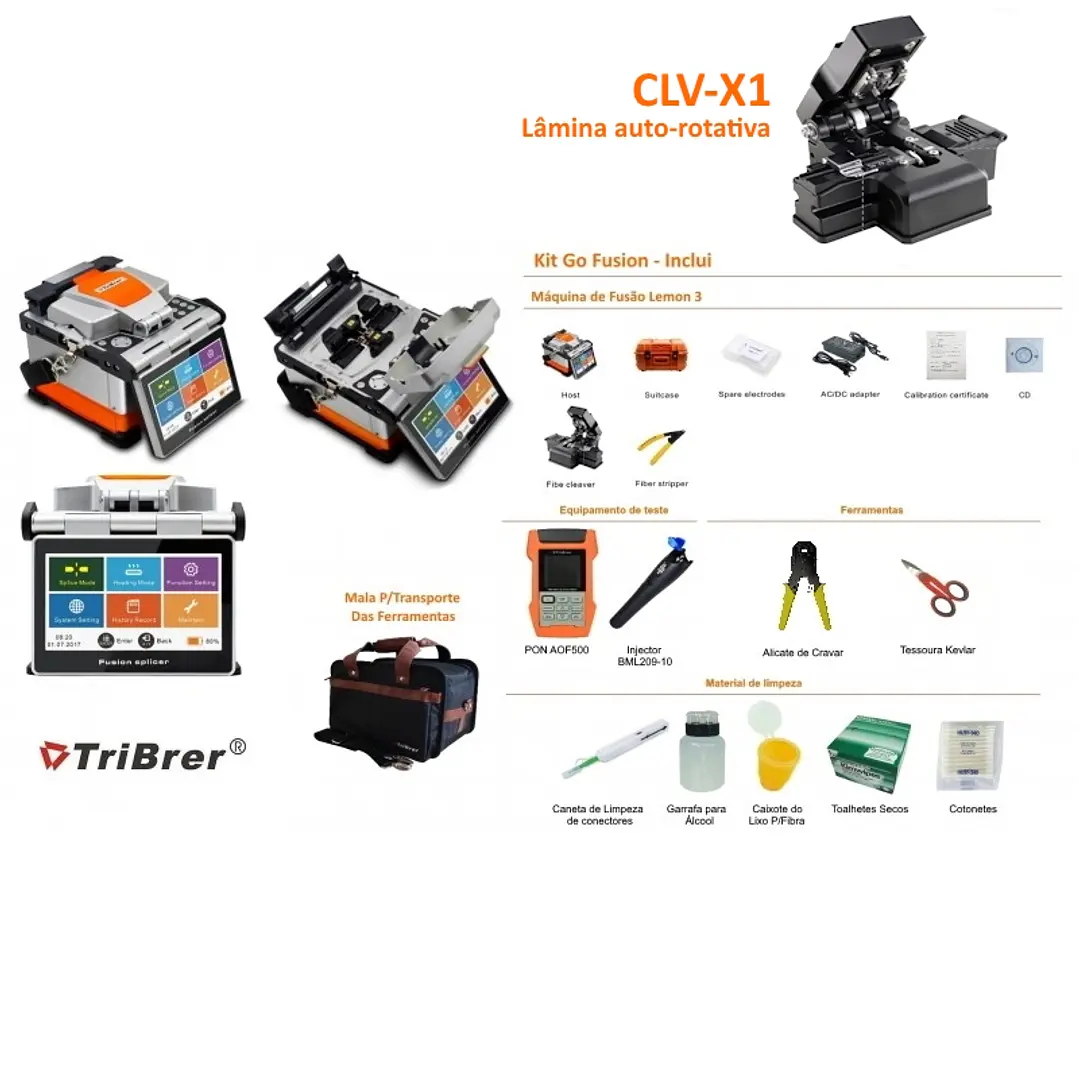

See the picture that includes the Kit.

For more information visit us at:

https://tribrer.pt/en/maquinas...

Main Features Melting Machine:

- 5-inch color LCD display

- 8s Fusing, 24s warm up time

- Multifunctional fiber support

- Integrated cooling tray

- Smart GUI graphic buttons and interface

- Simultaneous X and Y views with 200x magnification, 300x magnification in X or Y view

The Go Fusion Kit Includes:

1x Tribrer Lemon 3 Melting Machine

1x PON AOF500

1x BML209-10

1x Alcohol Bottle

1x Dustbin for fiber

1x Dry Wipes

1x Cleaning pen

1x Crimping Pliers RG11, RG59

1x Kevlar Shears

1x Fixed UTP wires

1x Krone

1x Swabs

Features Melting Machine:

Applicable Fibers

SM, MM, DS, NZDS, EDF

Splicing Fiber Number

Single core

Average Splicing Loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS), 0.04dB (BIF / UBIF)

Splicing Mode

Auto & Manual & Half Auto

Splicing Setting

100 groups customize

Splicing Time

Typical 8s with standard SM fiber

Heating Time

24s

Electrode Life

2500

Tension Test

2.0N (Standard)

LCD

5.0 inch color LCD

Language

English or customize

Fiber Magnification

X / Y: 180 times, X or Y: 360times

Storage

10000 groups

Data Connector

USB 2.0

Power Supply

Li-ion battery or AC / DC input: 13.5V

Battery Capacity

Typical 200 cycles (splicing and heating)

Environmental Conditions

-10 ~ + 50 (operation temperature), 0 ~ 95% RH (humidity), 0 ~ 5000 (altitude)

Dimension

164mm * 141mm * 138mm

Weight

1.83kg
